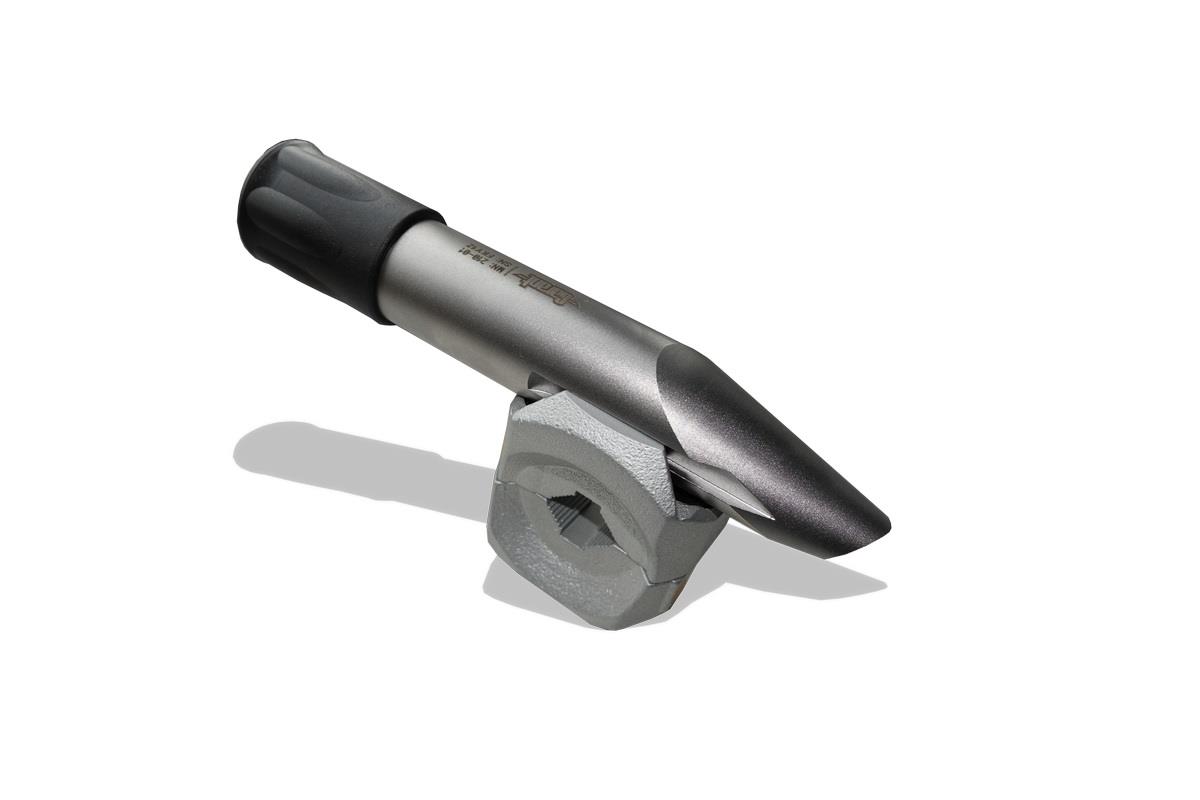

Theft Protection Garant Block - steering lock

Locks the steering shaft and protects the vehicle from theft

Operation concept:

– It is impossible to turn the wheels and steal the car with a lock in operation.
– The lock is pressed against the rigid elements of the car.
– The lock can only be opened with a key.

Operation procedure:

When the car is parked
– Insert the lock into the sleeve.
– The steering shaft is locked.

Before starting the engine:
- Insert the key into the lock and turn it.
- Remove the lock from the sleeve.
- The steering shaft is unlocked, you can drive.

Universal lock

Garant Block is a universal lock for a large variety of cars. It is suitable for vehicles with a steering shaft diameter of 16.5 mm to 25.5 mm.

Easy installation:

No additional equipment required.
No lifting device needed.
No disassembly needed.

The lock blocks the steering shaft of the vehicle via the clutch, which is rigidly fixed on the steering shaft, and the stopper, which is inserted into the clutch and prevents the steering shaft rotation, resting against the vehicle components. The stopper is set into the clutch automatically without manipulation of a key. Removing of the stopper from the clutch is done with an key.

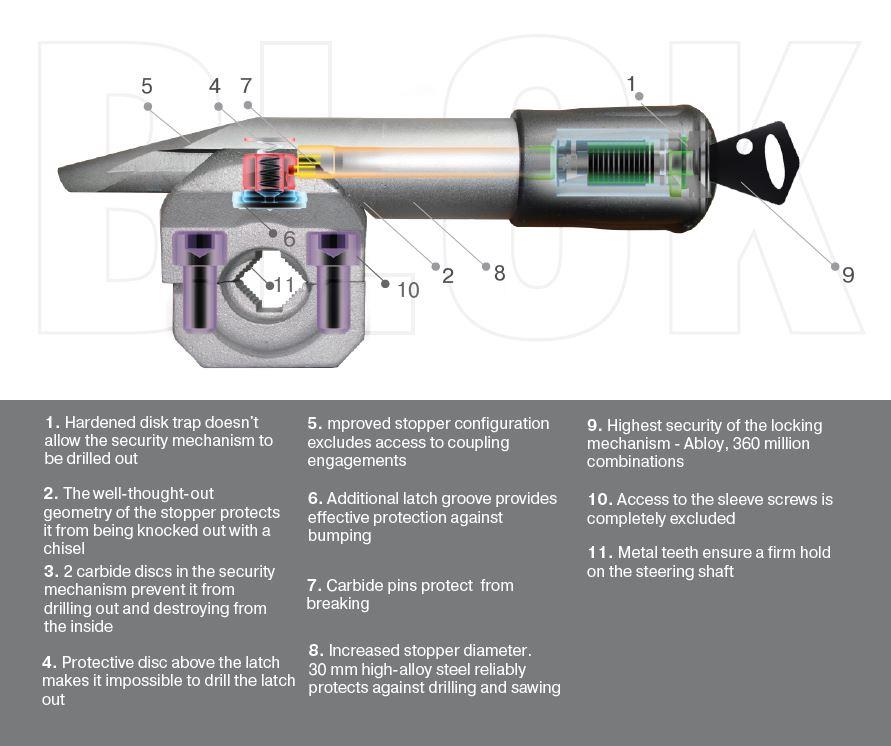

Security features:

• - Difficult access to the place of the lock installation. No opportunities to work there with any bench-work tool or an angle grinder due to the limited space;
• - Design features of the lock housing and the position of the stopper exclude any access to the connecting screws of the housing;
• - Hardened clutch, whose hardness is more than HRC 50, as well as specially established revolving protective cylinder and the shim eliminate drilling of the mechanism;
• - The mechanism, made of corrosion-resistant stainless steel, is stable to criminal destruction of the rotating hardened disk-trap. It eliminates drilling of the secret mechanism;
• - The stopper is made of polished hardened stainless steel and has a convenient handle of elastic PVC, which increases operating comfort during the cold season;
• - Circumferential grooves with a reverse taper on the surface of the latch and on the counterbore of the steering shaft clutch;
• - Difficult access to the lock ring that secures the disk-trap;
• - High security of the secret mechanism with up to 360 million possible combinations;
