Garant Consul - Gearbox Mechanical Locking Mechanism

  •  Garant Consul
  •  Garant Consul

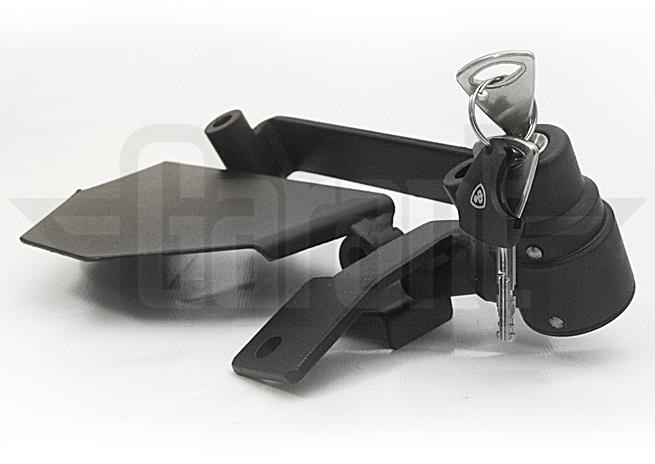

Antitheft plug-in free lock is installed at a gearbox of a car. A gear shift mechanism locking is ensured with a steel bar. The lock prevents the gear shift and unauthorized car use.

Garant Consul product range covers more than 100 car models.


  1. 1. High Criminal Endurance
    • - Abloy Protec security mechanism (1.97 billion of security mechanism combinations) installed in a thick-wall case is used in Garant Consul Gearbox Locking Mechanism
    • - A gear shift mechanism locking is ensured with a bar made of high tensile steel
    • - Lock structure wall thickness is not less than 4 mm
  2. 2. Maintainability
    • To lock a gearbox one should turn a key in the security mechanism. It ensures maintainability. Top priority output of security mechanism to the panel upper part ensures maximum comfort for a driver.
  3. 3. Excellent Ergonomics
    • The size of output part of security mechanism is up to 14 mm that is 2.5-3 times less than t other manufactures. It allows installing a lock with minimum intrusion at any car interior and at any surface which seems difficult from geometry point.
  4. 4. High Reliability
    • Garant Consul brackets are made as a welded structure made of sheet steel (5 mm thick). After welding the bracket surface is covered with a layer of black mat powder paint which ensures high corrosive resistance of an item and matches seamlessly a car interior.
  5. 5. Warranty
    • Garant Consul warranty period is 1 year from the date of selling to a consumer but not more than 1.5 years from the date of manufacturing.

Operation Procedures

A gearbox shift mechanism is locked and unlocked with an ABLOY key turned 180 degrees clockwise and counterclockwise. A spring activates the locking mechanism which locks the gearbox shift mechanism with a bar made of tampered steel. The lock is blocked only in a special gear shifting lever position.

We offer you to watch a video where you will see the operation of Garant Consul lock.
