Garant RIF - boat locks

Garant RIF

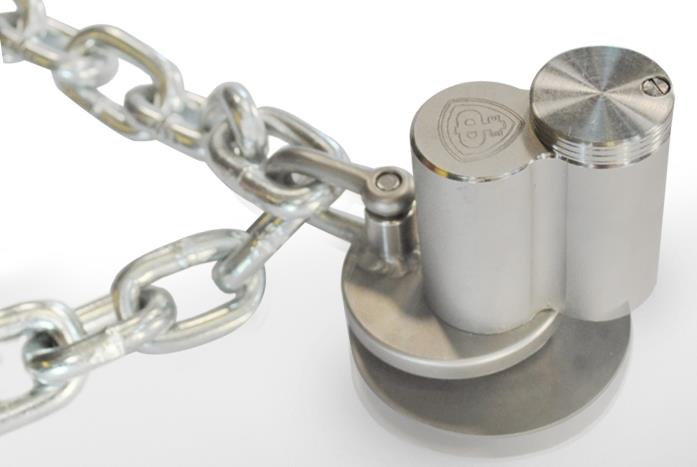

Garant RIF 03/2-TM1 is a universal lock for water transport.
This lock is a universal means of protection of water transport and can perform 2 functions: protection against theft of water transport and protection against theft of an outboard motor.

Protection of water transport
To protect against theft of water transport it is required:

Garant RIF Lock Bollard Adapter for chain Chain or rope

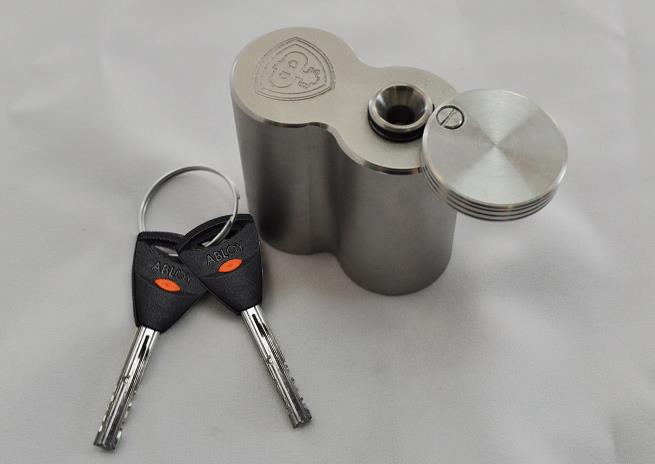

Garant RIF Lock
Bollard

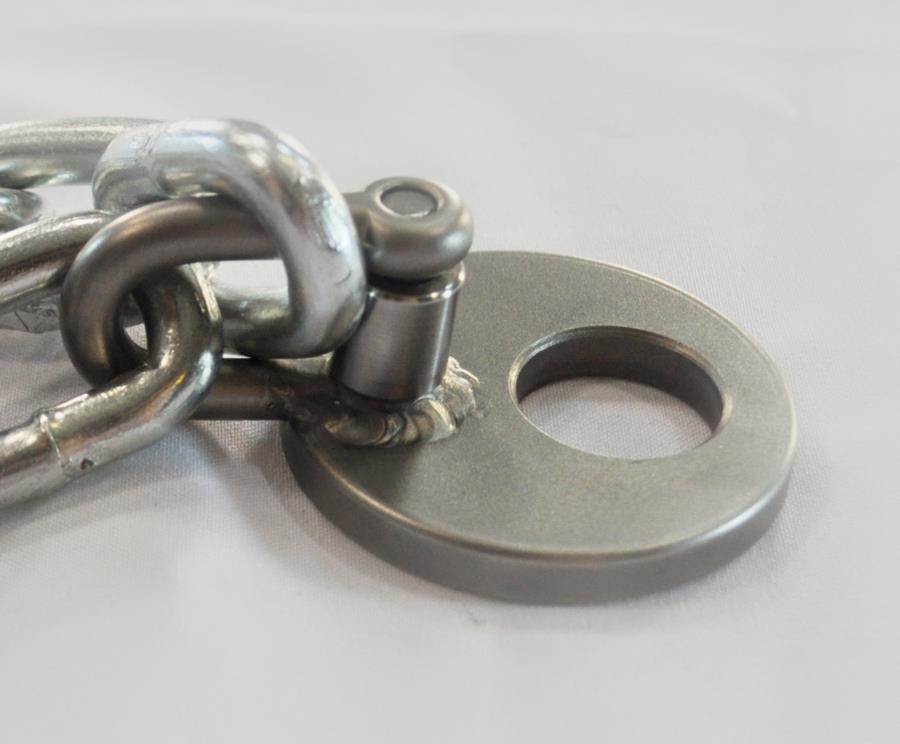

Adapter for chain

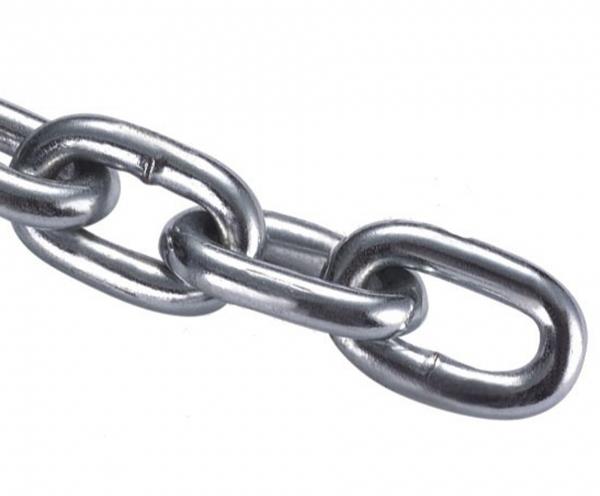

Chain or rope

In the vessel hull there is drilled a hole into where the Bollard is installed. On the bollard there is installed the Adapter for the chain, through which the chain is reeved. The chain fastens any object, firmly standing on the shore or bank (pier, parapet, tree). The whole chain structure is fixed by Garant RIF lock.
Application of this system for the water transport will eliminate the possibility of theft.

Protection of the outboard motor
The system is designed to protect against theft of the outboard motor mounted on the water transport and fixed on it by means of a bolted joint.
To protect against theft of the motor it is required:

Garant RIF Lock Fastening bolt
Garant RIF Lock

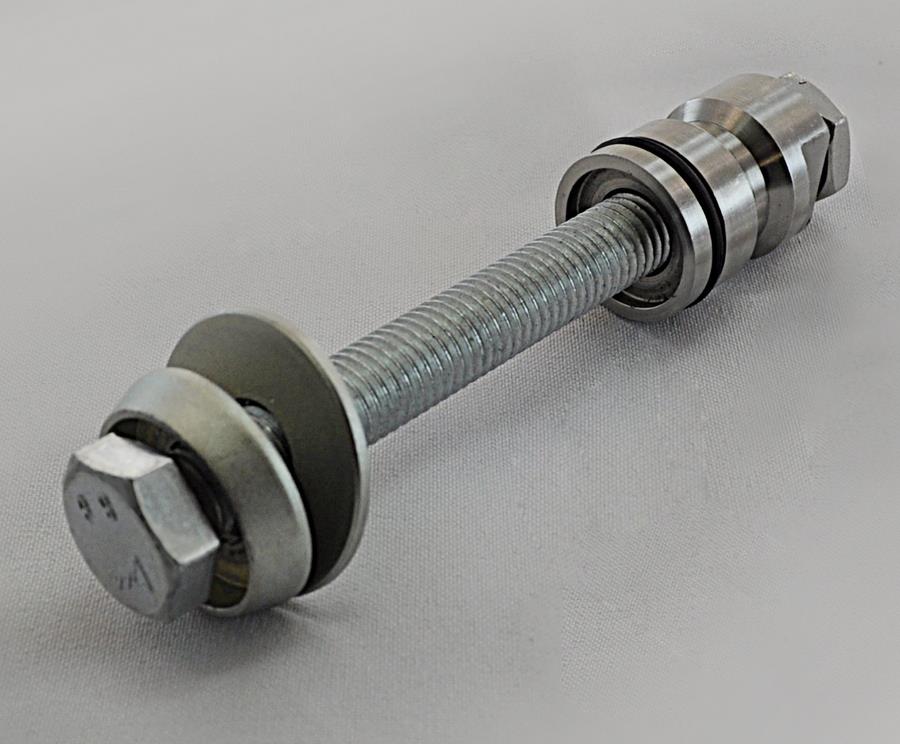

Fastening bolt













For the lock operation there must be installed the Fastening bolt in the transom hole instead of the standard bolt that secures the outboard motor. On top of the bolt there must be installed Garant RIF Lock.
Application of this system for the water transport will eliminate the possibility of theft of the outboard motor from it.
Garant RIF universal lock for water transport and all the accessories, offered to it, are manufactured from high-strength stainless steel and are fully suitable for use both in the river and the sea water transport. In the lock there is used ABLOY SENTO disk secret mechanism.


замок на болт

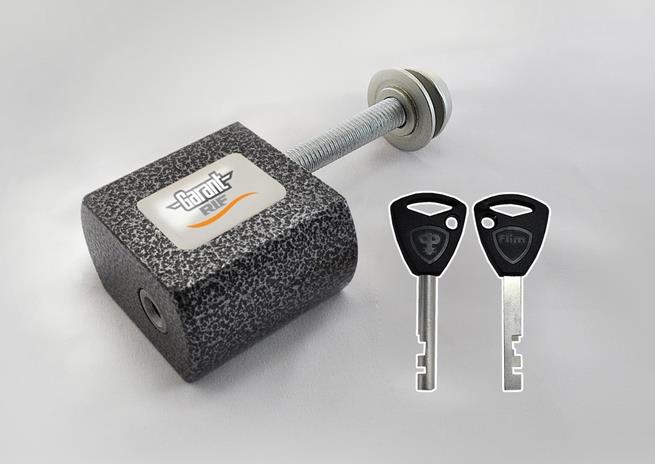

Garant RIF C.02 / 1-U1 lock on the bolt fixture of the outboard motor.

The lock is designed to protect against theft of the outboard motor fixed by means of a bolted joint on the water transport transom.

The lock consists of 2 elements:

  •  - The Lock. It is made of structural steel with corrosion-resistant coating. In the lock there is used ABLOY CLASSIC disk secret mechanism. All connections of the lock are hermetical that protects the lock from moisture getting inside.
  •  - The Bolt with a set of protective shims and bushings. It is made of structural steel with corrosion-resistant coating.

The lock is easy to install; for operation of the lock there must be installed instead of the standard bolt in the transom hole the Bolt with the set protective shims and bushings, and to fix the lock on it.




Замок на струбцины Гарант РИФ

Garant RIF 01/1-U1 lock on the screw clamp of the outboard motor fixture.

The lock is designed to protect against theft of the outboard motor fixed by screw clamp on the water transport transom.

The lock consists of 2 elements:

  •  - Housing. It is made of structural steel with corrosion-resistant coating
  •  - APECS Suspended Lock.

The lock is easy to install: the lock housing is installed on the outboard motor clamps and is secured by the Suspended Lock.
